CIRCLE VIEW

May 14, 2019 Logitech
SECURE VIDEO YOU CAN TRUST

Secure your home a better way with the Circle View HomeKit-enabled home security camera. Designed with best-in-class Logitech TrueView™ video, wide 180° field of view, and built-in privacy features to give you and your family total peace of mind, inside and out.

LOGITECH TRUEVIEW BEST-IN-CLASS VIDEO

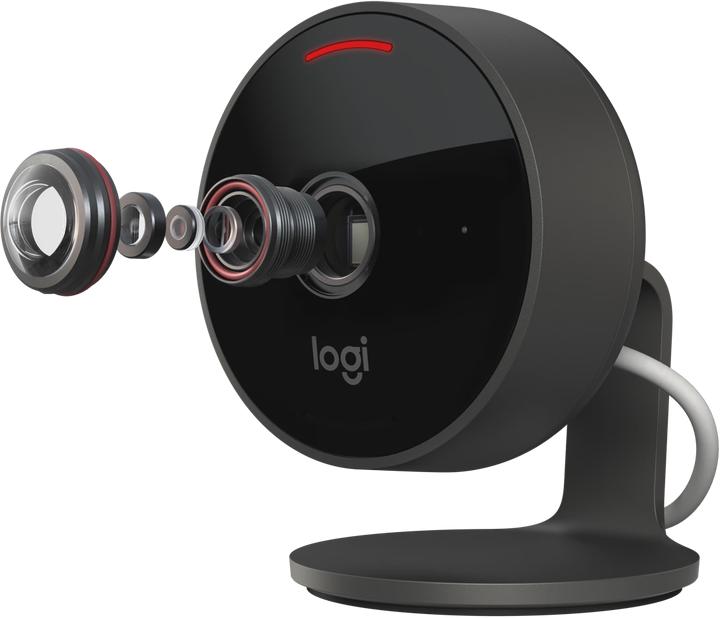

Circle View features our Logitech TrueView best-in-class video experience. Capture everything in razor-sharp detail with full HD, 180° diagonal field-of-view glass optics, and more.

SEE THE BIGGER PICTURE

An ultra wide 180° field-of-view ensures you keep your eye on what matters without missing what’s happening on the sidelines.

SUPERIOR CLARITY

Glass optics and a high-quality sensor with wide dynamic range means you catch every detail crystal-clear no matter how bright or dark the environment is.

ENHANCED NIGHT VISION

Circle View’s infrared powered night vision is optimized for full-field visibility and superior clarity in the dark up to 15 ft (4.6 m) away.

CRAFTED FOR YOUR HOME

Circle View features a stunning design with premium details, including a metal base, matte finish, and a power cable that blends seamlessly with any space.

SPECS & DETAILS
DIMENSIONS
  • Height: 2.2 in (5.68 cm)
  • Width: 2.65 in (6.72 cm) 2(Camera body only - in closed position)
  • Depth: 2.78 in (7.05 cm) 3(Camera body only - in closed position)
  • Weight: 8.92 oz (253 g) 4(Camera body only - not including cable)
TECHNICAL SPECIFICATIONS
  • Wireless Protocol Support: 2.4 GHz 802.11 b/g/n Wi-Fi
  • Lens + Camera FOV: Glass lens with 180- degree DFOV
Sensor + Video
  • 16:9 format sensor with up to 1080p HD video recording support
  • Night Vision Support: Infra-red (IR) light based, automatically triggered based on ambient light sensor in front of camera
  • Night Vision Illumination: 2 IR LEDs that provide illumination in an unobstructed area up to 15 ft away
  • Microphone: Digital MEMS
  • Speaker: Mono
Placement

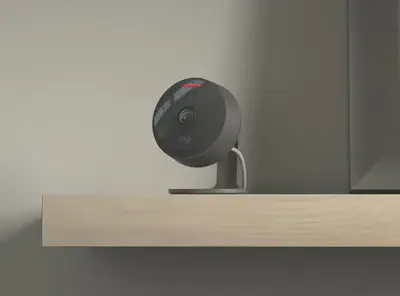

  • Placement: Horizontal surface such as table/shelf etc
  • Vertical surface such as wall using provided mounting hardware
  • Iverted surface such as ceiling using provided mounting hardware
Orientation
  • Orientation: Manually adjustable pan (moving the camera base)
  • Manually adjustable tilt (turning the camera head up or down)
  • Manually adjustable rotate (rotating the camera head)

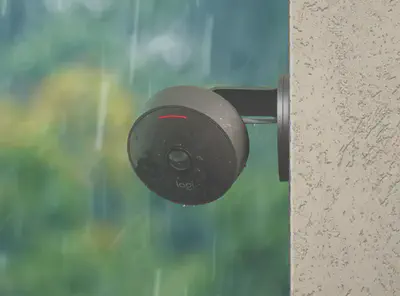

  • Camera Body Weatherproof Rating: IP 64
  • Operating Temperature Range: -20-50°C (40°C with night vision illumination on)
PACKAGE CONTENTS
  • 2.4 GHz Wi-Fi-based (802.11 b/g/n) full HD weatherproof security camera with tethered 10-foot power cable
  • Indoor USB power supply
  • Wall mounting hardware (mounting plate, cable clips, screws and anchors)
  • Quick start guide
WARRANTY INFORMATION
  • 1-Year Limited Hardware Warranty
